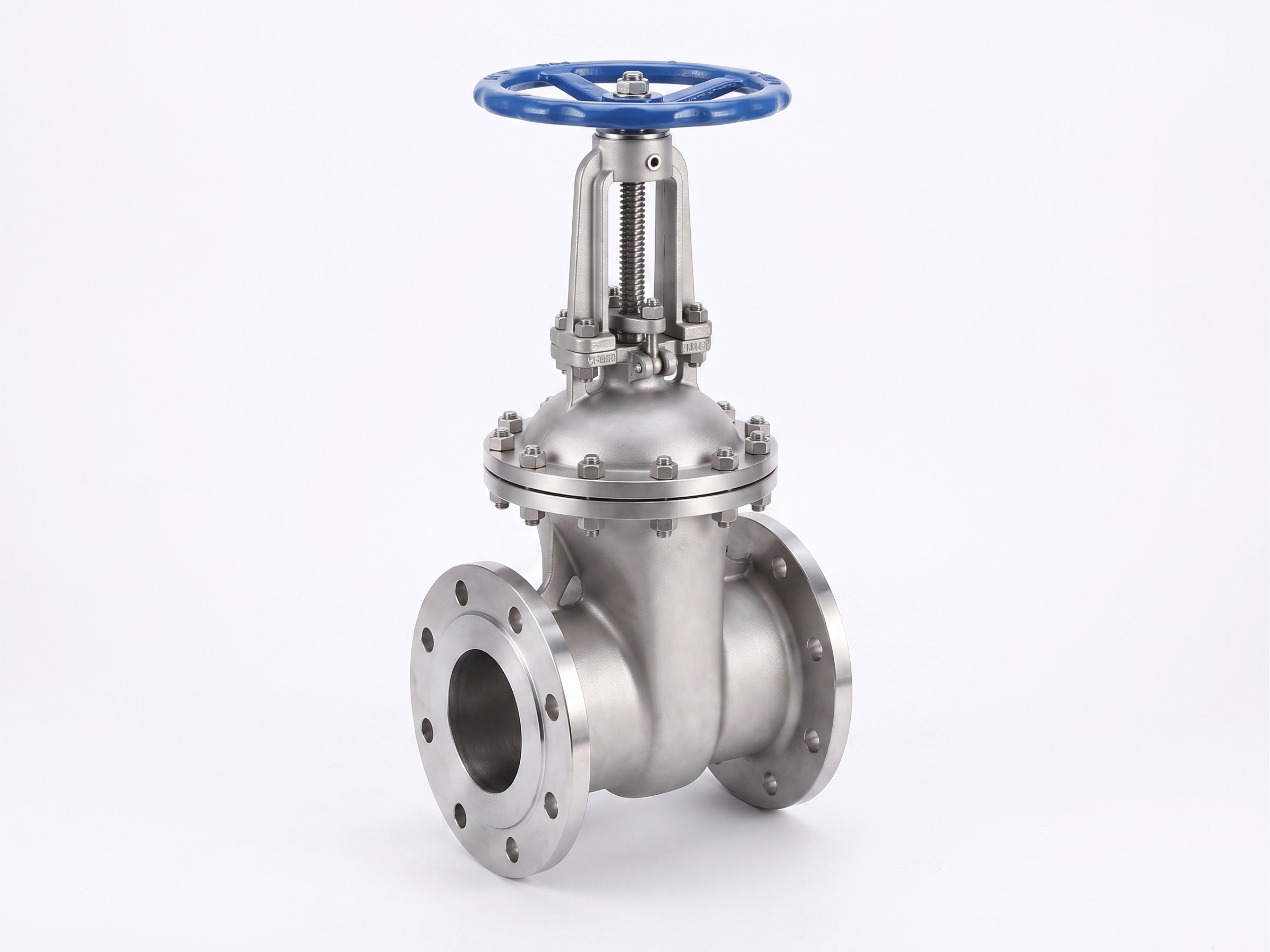

GB Standard Stainless Steel Gate Valve – YONCO PN16 to PN160
The YONCO GB Standard Stainless Steel Gate Valve is a highly durable isolation valve designed specifically for mildly corrosive and oxidative environments. Manufactured in strict accordance with the GB/T 12234 specification, this valve utilizes premium austenitic stainless steel components to deliver outstanding resistance against nitric and acetic acids. Covering a wide size range from DN15 to DN800 and handling pressures up to 16.0 MPa, its straight-through, bi-directional flow design ensures maximum efficiency and minimal pressure drop. It is the ultimate choice for critical chemical, petrochemical, and pharmaceutical pipelines operating at temperatures up to 200°C.
Core Features & Advantages
- Superior Corrosion Resistance: Constructed from high-grade austenitic stainless steel (CrNiTi for Type P, CrNiMoTi for Type R), offering exceptional longevity and stability in oxidizing acid media.
- Optimized Flow Dynamics: The straight-through body design allows media to flow in any direction without restricting the pipeline, significantly reducing fluid resistance and preventing pressure loss.
- Low Operating Torque: The perpendicular movement of the gate relative to the flow direction minimizes friction, ensuring a smooth, labor-saving opening and closing operation.
- Versatile Sealing Combinations: Seat sealing surfaces are customizable with PTFE, stainless steel paired with hard alloy, or stellite hard-facing, providing a leak-proof barrier tailored to specific abrasive or corrosive conditions.
- Compact & Efficient Structure: Engineered with a shortened face-to-face dimension to save critical installation space while maintaining robust sealing performance and minimizing erosion when fully open.
Standards & Technical Specifications
| Category | Applicable Standard & Details |
|---|---|
| Design & Manufacture | GB/T 12234 |
| Face-to-Face Dimension | GB/T 12221 |
| Flange Connection Dimensions | JB/T 79.1 |
| Pressure & Temperature Base | GB/T 9131 |
| Nominal Pressure (PN) | 1.6, 2.5, 4.0, 6.4, 10.0, 16.0 MPa (PN16 – PN160) |
| Size Range | DN15 – DN800 |
| Test & Inspection | JB/T 9092 |
| Body Materials | CrNiTi Steel (Type P), CrNiMoTi Steel (Type R) |
Primary Applications
• Nitric Acid Processing Pipelines
• Acetic Acid & Weak Corrosive Media
• Fine Chemical & Petrochemical Plants
• Pharmaceutical Manufacturing
• Food & Beverage Industry
• Industrial Fluid Control Systems
Certified GB Stainless Steel Valves by YONCO
When handling corrosive industrial media, rely on YONCO. Our GB standard stainless steel gate valves undergo rigorous hydrostatic and pneumatic testing to ensure long-lasting structural integrity and bubble-tight isolation. We provide fully customized material solutions (including PTFE or hard alloy seals) tailored for your specific operating temperatures and acidic environments. Contact our sales engineers today to specify the exact configuration for your piping system.
